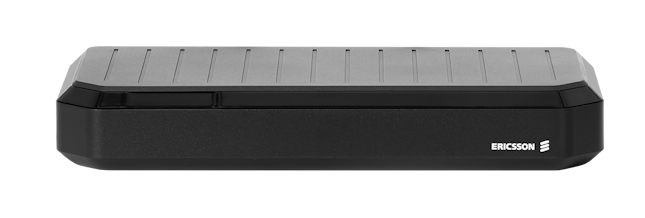

The E400 is a 5G Branch router that is designed to transition from 5G NSA to 5G SA. It has lots of bells and whistles such as:

  • 3GPP Release 17 Cellular
  • eSIM capabilities
  • Network Bonding
  • Network Slicing
  • WiFi 7
  • Satellite Connectivity
  • Zero Trust
  • Container Software (Docker)
  • Captive Modem Capable
  • Battery Backup

The E400 sits between the E300 and the E3000. It is designed for approximately 50 users. But this is just an estimate, based on an average usage for a user.

In order to take advantage of the offerings of 5G SA, more WAN interfaces are required. This is referred to as 'Universal Connectivity', i.e. using Wired, Cellular, WiFi and Satellite connections to accept data bonding and Network slicing for the increased amounts of data received.

Words that are repeatedly used regarding the E400 are Increase 'predictability', 'resiliency', and 'quality of experience' combined with the increase in Artificial Inteligence results in more data, more devices, more throughput, more users.

eSIMs implementation will be in 2 phases. Phase 1 involves using a carrier SIM to load the eSIM software. This is scheduled for 1H2025. The actual bootstrap of the eSIM where the implementation is zero touch is scheduled for 2H2025. Of interest is that insertable eSIMs modules will be available for the W1850 and W1855 adapters 2H2025.

As part of the E400 introduction with the 5G E modem and the predictability of the need for more devices and more users is the introduction of Access Points and Network switches which are managed using Ericsson/CradlePoint NetCloud. Full implementation of these offerings will be available 2H2025. Full implementation includes up to 5 WiFi APs and 2 24 or 48 Network Switches. Ericsson/CradlePoint has partner agreements with Juniper and Extreme for requirements that go beyond the current implementation plans.

Quick Start Guide for E400
E400 Data Sheet
NetCloud Branch Service Plan Features

All products ship with license terms depending on the SKU ordered.

E400 BLA1-E400-5GE-AM-N
1-yr NetCloud Enterprise Branch Routing Essentials Plan, Advanced Plan, and E400 (5G Modem), Americas
$2,339.002339.00
457 BLA1-E400-5GE-AM-N TCI Systems
E400 BLA3-E400-5GE-AM-N
3-yr NetCloud Enterprise Branch Routing Essentials Plan, Advanced Plan, and E400 (5G Modem), Americas
$3,399.003399.00
458 BLA3-E400-5GE-AM-N TCI Systems
E400 BLA5-E400-5GE-AM-N
5-yr NetCloud Enterprise Branch Routing Essentials Plan, Advanced Plan, and E400 (5G Modem), Americas
$4,359.004359.00
459 BLA5-E400-5GE-AM-N TCI Systems
E400 BL01-E400-5GE-AM-N
1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas
$2,099.002099.00
463 BL01-E400-5GE-AM-N TCI Systems
E400 BL03-E400-5GE-AM-N
3-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas
$2,679.002679.00
464 BL03-E400-5GE-AM-N TCI Systems
E400 BL05-E400-5GE-AM-N
5-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas
$3,259.003259.00
465 BL05-E400-5GE-AM-N TCI Systems
170752-001
SIM, ATT 2FF, 4FF Triple punch, ATT Retail, or ATT APEX (Partner Exchange) rate plans, not compatible with ATT IoT/Jasper or FirstNet platform based accounts
$12.0012.00
352 170752-001 TCI Systems
170753-000
SIM, T-Mobile 2FF, 4FF Retail Triple Punch SIM SKU ZZZ260R060
$12.0012.00
354 170753-000 TCI Systems
170921-000
Battery, 25W, 56.62Wh: Used with E400, X20, E100, E110, X10
$210.00210.00
495 170921-000 TCI Systems
170923-000 170923-000
Cellular Antenna, Charcoal, 600MHz-6GHz, SMA, 155mm; Used with E400, X20
$17.9917.99
493 170923-000 TCI Systems
170924-000
Power Supply, 12VDC 2x2 1.5M (North America Type A); Used with E400, X20
$24.9924.99
494 170924-000 TCI Systems
SIMINSERT01
SIM insertion of 1 SIM per NetCloud package, must be combined with one of the following; 170594-000, 170594-002, 170752-000, 170752-001,170753-000, or 170840-001 or Customer Supplied
$10.0010.00
360 SIMINSERT01 TCI Systems
SIMINSERT02
SIM insertion of 2 SIM per NetCloud package, must be combined with two of the following; 170594-000, 170594-002, 170752-000, 170752-001, 170753-000, or 170840-001 or Customer Supplied
$15.0015.00
361 SIMINSERT02 TCI Systems

There are no licenses or renewals available for purchase on our site as these transactions require specific information about your account. Please contact us via Email or Call 718-888-8898. We will make sure your licenses and renewals orders are placed seamlessly with Ericsson/CradlePoint. Please remember that Ericsson/CradlePoint may add a Reinstatement fee of 10% for any expired licenses.

All sales are final. Ericsson/CradlePoint controls the return policy. Please ensure that you are ordering the correct product for your needs. If you are unsure of whether you are ordering the correct product, please contact us via email at sales@tcisystems.com or Call 718-888-8898. We are more than happy to discuss your project and to ensure that the items you have selected will satisfy your requirements.
